CROC LIFT
The CROC LIFT product range includes submersible motorised trailers and travel lifts, meeting the needs of operators not disposing of launching piers or in need to make the most of the ramps present in the working area.
With the CROC LIFT series, BOAT LIFT is a first-mover in the amphibious machines market, offering tailor-made solutions designed directly with the customer according to slopes, terrain characteristics, type of boats and spaces available within the boatyard.

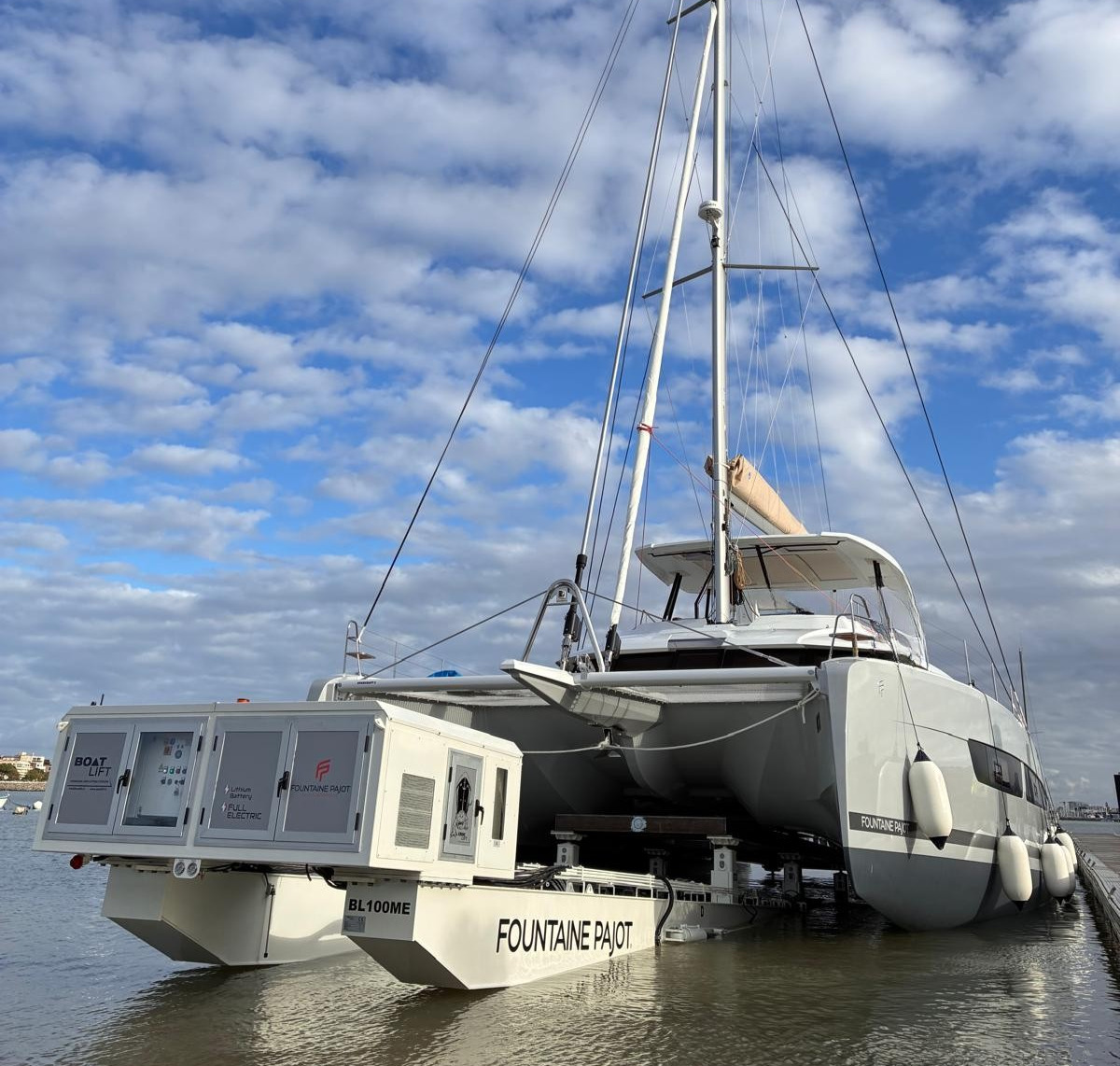

AMPHIBIOUS TRAILERS
The specific design of CROC LIFT amphibious trailers allows easy hauling and launching operations, both for mono and multi-hulls. Thanks to the hydraulic lifting points and to the patented lateral supports, it is possible to take boats out directly from water with no risk for the hulls. On the yard, the trailer ensures maneuverability and optimisation of stocking spaces.
MAIN FEATURES
Maximum gradient >10%
Variable track by telescopic hydraulic expansions system
Anti-corrosion painting compliant to C5m cycle
Radio remote control with proportional control system
Lifting by double-effect cylinders on each wheel-group
Self-levelling system for maximum load stability
Hydraulic supports on each spar
Electrical supply by 12 VDC battery
Double proportional motion speed unloaded / loaded
Pneumatic tyres
Front and rear steering wheels
Filtering of system hydraulic oil
AMPHIBIOUS TRAVEL LIFTS
MAIN FEATURES
Maximum gradient >10%
Tailored dimensions according to customer’s needs
Soundproofed diesel engine compliant to current regulations
Anti-corrosion painting compliant to C5m cycle
Independent and electronically synchronised winches
Load balancing 60% / 40%
Double proportional lifting speed unloaded / loaded
Lifting belts with safety factor 7:1
Double proportional motion speed unloaded / loaded
Industrial tyres, air-inflated or equipped with specific filling
Pipes and fittings in galvanised painted steel
Filtering of system hydraulic oil
Electrical supply by 12/24 VCC battery
Remote assistance in real time by M2M system
